Steel structure 6m to 8m long C purlin roll forming machine / C Z U purlin roll forming machine
1. Description of c purlin roll forming machine
The c purlin which was produced by C purlin roll forming machine can be used for the major stress structure of the large and middle sized industrial constructions and civilian constructions. The roof load bearing and wall panel supporting of the plants, warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.
LBM factory is manufacturing high quality C shape purlin roll forming machines, and exported to the foreign countries such as Australia, India, Uzbekistan, Indonesia, Croatia, Thailand, etc.
2. Technical Parameters of c purlin roll forming machine
No. | Item | Description |
1 | The coil width | adjustable |
2 | Output speed | 15-20m/min |
3 | Thickness of color steel sheet | 2.0-4.0mm |
4 | Material | Q195~235 cold steel,Hot zinc coil |
5 | Main motor power | 15Kw |
6 | Hydraulic oil pump motor | 7.5Kw, the pressure of hydraulic:20Mpa |
7 | Flattening | 7 steps |
8 | Pre-Punch | 1 station |
9 | Main roller stations | 16 steps |
10 | Roller material | Gcr15, quenching and tempering |
11 | Main roller material |
45# advanced steel, quenching and tempering, Dia 85mm |
12 | Tolerance | 3m±1.5mm |
13 | Material of cutting | Cr12Mov,quench HRC 58-62℃ |
14 | Frequency inverte | Panasonic PLC |
15 | Computer controlling system | PLC controlling length, encoder is OMRON brand |
16 | Transmission typ | 1.5 single row chain drive |
17 | Dimension (L*W*H) | 8.5m*1.2m*1.2m |
18 | Voltage | 380V,50Hz, 3 phase |

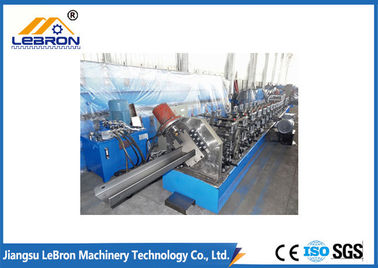

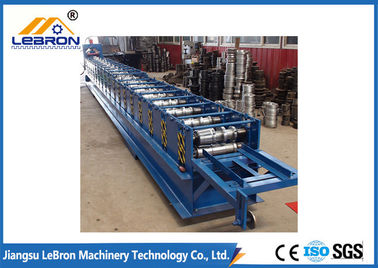

3. C purlin roll forming machine
4. Main components of c purlin roll forming machine
No. | Name | Unit | Qty |

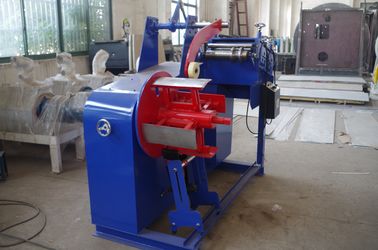

1 | Decoiler | Set | 1 |
2 | Entry Beach | Set | 1 |
3 | Main Machine for roll forming | Set | 1 |
4 | Cutting System | Set | 1 |
5 | Punching | Set | 1 |
6 | Output Table | Set | 1 |
7 | Control System(PLC) | Set | 1 |
8 | Hydraulic station | Set | 1 |
5. C purlin roll forming machine flow chart
6. Our service
1). Install and Training:
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, manual and video is provided to show how to install and operate.
2). After-sale Service:
a. Guarantee period
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).
b. Foreign debugging
If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day
c. Training
During installation and adjustment of the equipment, our engineers shall provide the training to
buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.
d. Lifetime services
Life time services to every customer.
7. Delivery
